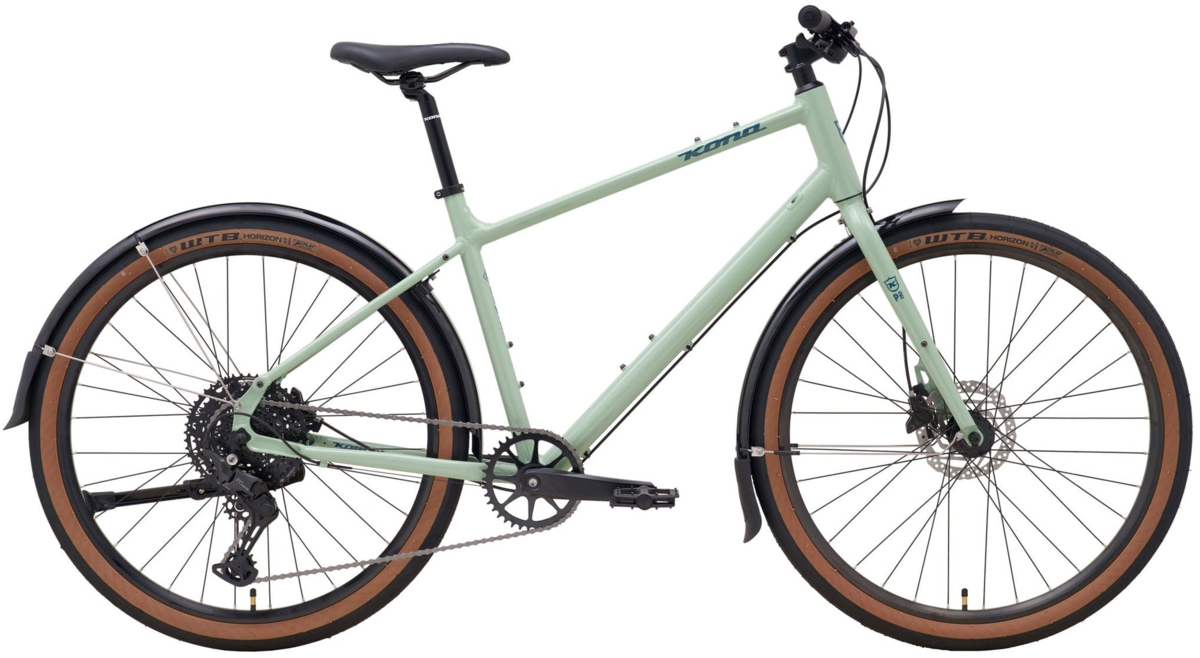

Kona Dew DL
$1,049.99
Details
The Dew Deluxe is the workhorse of choice for commuters from all around the world, whether riding to work or to the grocery store. A reliable, easy-to-ride bike ensures a safe and efficient ride every time you’re on it. With upright and comfortable geometry, a reliable 10-speed drivetrain, hydraulic disc brakes, fast-rolling, puncture-resistant 650x47c tires, and fenders with mud flaps, the Dew Deluxe will get you there in no time at all.

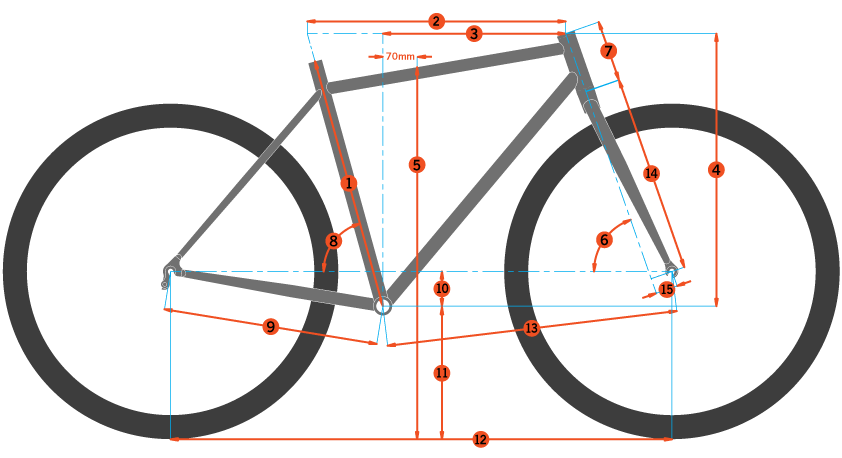

| Size | S | M | L | XL | |
|---|---|---|---|---|---|
| 1 | ST Length | 420 | 470 | 520 | 580 |
| 2 | TT Length | 550 | 597 | 636 | 686 |
| 3 | Reach | 398 | 423 | 439 | 465 |
| 4 | Stack | 569 | 607 | 644 | 682 |
| 5 | Standover | 687 | 722 | 757 | 798 |
| 6 | HT Angle | 70 | 70 | 70 | 70 |
| 7 | HT Length | 135 | 175 | 215 | 255 |
| 8 | ST Angle | 75 | 74 | 73 | 72 |
| 9 | CS Length | 450 | 450 | 450 | 450 |
| 10 | BB Drop | 70 | 70 | 70 | 70 |
| 11 | BB Height | 272 | 272 | 272 | 272 |
| 12 | Wheelbase | 1077 | 1116 | 1146 | 1185 |
| 13 | Front Center | 636 | 675 | 705 | 744 |
| 14 | Fork Length | 410 | 410 | 410 | 410 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 |
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
Specs
| Frame | Kona 6061 Aluminum Butted |
|---|---|
| Fork | Kona Project Two Aluminum Disc |
| Rims | Double Wall alloy |
| Hubs | Front Hub: Joytech 100x9mm, Rear Hub: Joytech 135x10mm |
| Spokes | Stainless Black 14g |
| Tires | WTB Horizon Comp w/ Puncture Protection 650x47c |
| Bottom Bracket | Prowheel 68mm |
| Crankset | Samox |
| Chainrings | 38t |
| Shifters | Shimano Cues |
| Rear Derailleur | Shimano Cues |
| Cassette/Freewheel | Shimano LG300 11-48t 10spd |
| Chain | KMC Xglide |
| Brakes | Shimano MT200 Hydraulic |
| Rotors | Shimano RT26 160mm |
| Brake Levers | Shimano MT200 Hydraulic |
| Handlebars | Kona Aluminum Riser |
| Tape/Grips | Kona Key Grip |
| Stem | Kona Commuter |
| Headset | Feimin FP-H863 |
| Seatpost | Kona Thumb w/Offset 27.2mm |
| Saddle | Kona Commuter |
| Pedals | Kona JS2 |
| Accessories & Extras | Fenders w/ Mudflaps & Kickstand |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Gloss Jade w/ Storm Blue Decals / Small / 650B | 841073183654 | B36DWDG01 | 210000016670 |
| Gloss Jade w/ Storm Blue Decals / Large / 650B | 841073183678 | B36DWDG05 | 210000016673 |
| Gloss Jade w/ Storm Blue Decals / X-Large / 650B | 841073183685 | B36DWDG06 | 210000016672 |
